The Crash barrier absorbs maximum impact of the vehicle and ensure minimum damage to the vehicle and the occupants.
During night and bad weather the barriers act as a visual guide to the drivers
The impact energy is reduced to the maximum possible extent, due to the friction between the W/Thrie beams and the vehicle, enabling gradual deceleration of the vehicle into the carriage way.
The vehicle is prevented from skidding back into the carriage way, thus avoiding the risk to flowing traffic.

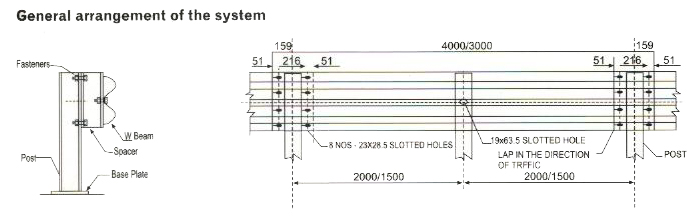

KayKay Steel Guard System - Components
Item
Size-mm
Thick-mm
Std Length-mm
Material Specification!

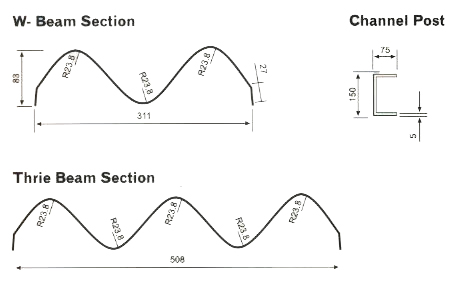

W Beam
311 x 83
2.67/3.00/3.43
3318/4318
IS 2062 or equivalent
Thrie Beam
508 x 83
2.67/3.00/3.43
3318/4318
do
Post
150 x 75
5
as per site condition
do
Spacer
150 x 75
5
330/524
do
Dome head bolts
M16
-
40
IS 1367/ASMT-A36/A325
Hex head bolts
M20
-
40
do
Anchor bolts
M22
-
as per site condition
IS 2062/ASMT-A36
Types of Steel Crash Barriers System
Applications

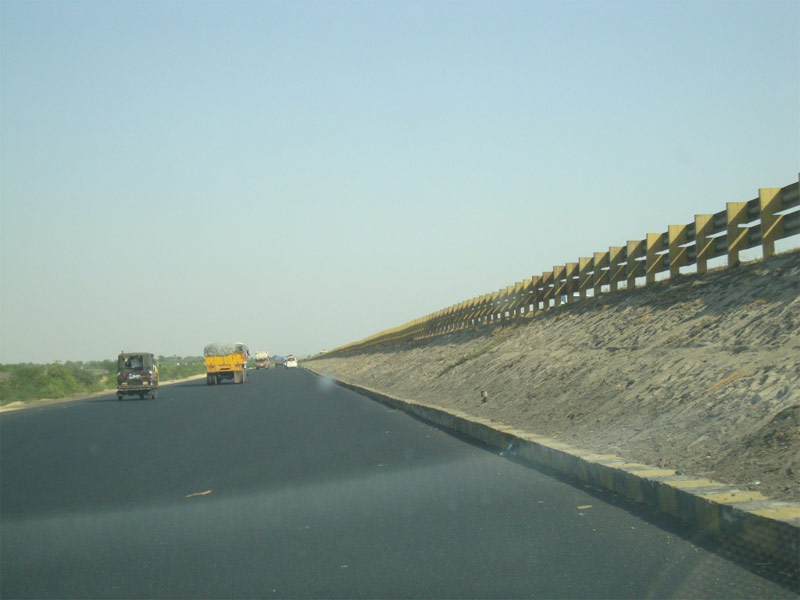

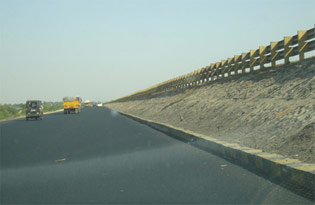

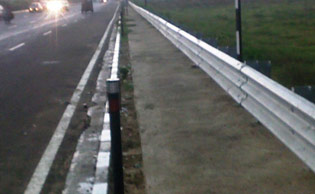

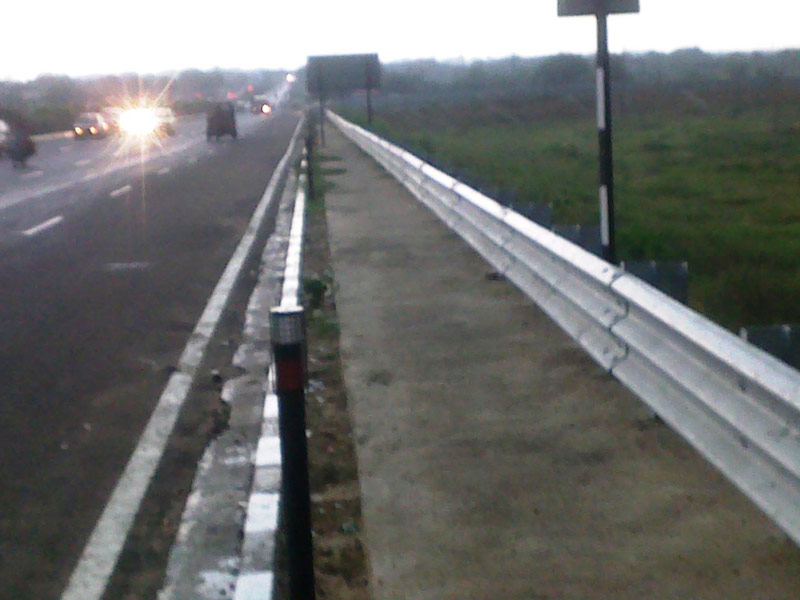

On Highways! Expressways road edges and medians.
On Bridges & bridge approaches and other high embankment areas.
Along Hilly terrains! Ghat roads.
All the side of Motor car racing tracks.
Along Pedestrian Footpaths on bridges! pathways.
Around Bridge piers, Abutments and important buildings located in accident prone areas.
Galvanising
All the Beams, Posts & Spacers shall be Hot dip Galvanised to 550 gms / sqm as per AASHTO /MoST requirements
Reference Standards
Most :
Ministry of Surface Transport, India - Guidelines for installation of safety barriers along Indian network.
AASHTO M180 :
American Association of State Highway & Transport officials.
BS 657 :
British standard specification for un-tensioned and tensioned beam safety fences.
